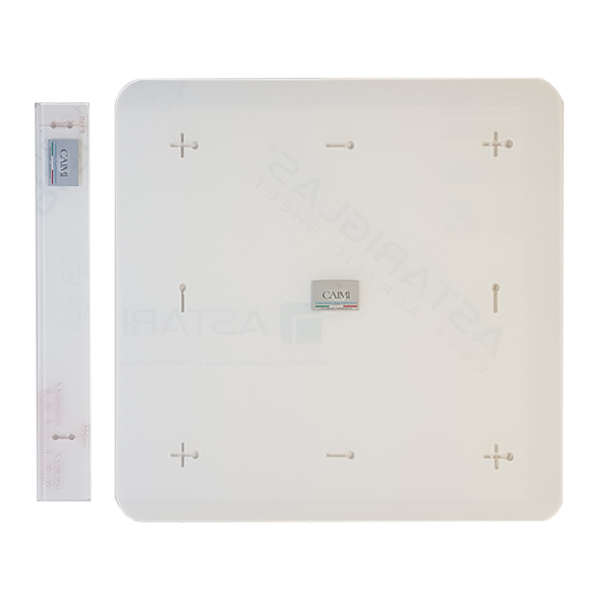

Plexiglass shrinkage stability template and percentage % ruler used for dimensional stability control (on fabrics).
It is composed of two elements, a template and a scaled ruler: the first one is used to mark the samples, both in height and in length, before the test it will undergo; the second one is used to read, directly in percentage, the reduction verified after the test.
Shrinkage Template Scale, suitable for all fabric shrink testing standards, is used for marking pairs of reference points on the textile specimens for assessing dimensional change after a specified treatment, such as washing, dry cleaning, soaking in water, etc.

INTERNATIONAL STANDARDS: ISO 3759, AATCC 135, BS EN 3759, GB/T 8629, BS 4931,  M&S P1A, etc.

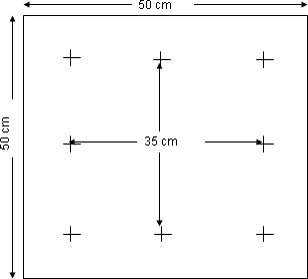

External Dimension: 500x500x5mm
Internal marking interval: 350x350mm
Weight: 1Kg
